Tripp Lite NetDirector 8-Port 1U Rackmount Console HDMI KVM Switch w/ 17" LCD
Tripp Lite NetDirector 8-Port 1U Rackmount Console HDMI KVM Switch w/ 17" LCD

Your Price:
$2547.18


 Add to Cart
Tripp Lite NetDirector 8-Port 1U Rackmount Console HDMI KVM Switch w/ 17" LCD

Tripp Lite NetDirector 8-Port 1U Rackmount Console HDMI KVM Switch w/ 17" LCD
Your Price:
$2547.18



 Add to Cart

Item #
N-482507
Category
KVM Consoles
Availability
Item is in stock
Condition
New
Brand
Tripp Lite




Product Rating

(0 Ratings) Write a Review

Free Shipping


Free Budget Shipping



Many items at NothingButSavings.com offer FREE Budget Shipping. Plus, as with many of our competitors which do offer free shipping, we don't ask you to spend a specified amount in order to qualify for FREE Budget Shipping.

How do I qualify for Free Budget Shipping?

1. Add the item(s) that qualifies for FREE Budget Shipping to your order's shopping cart.

2. If a product has our "Free Shipping" tag that item will qualify for FREE Buget Shipping regardless of its price.

3. Proceed to checkout and select Budget Shipping as your shipping option (items will take an additional 7-10 business days to ship).

4. Ship your item(s) to a valid U.S. address.

5. Then, complete your order. It's that simple!

6. FREE Budget Shipping excludes certain oversized and/or overweight items, and those products that do not include this tag.

Some items may be excluded:

If certain items in your shopping cart are not eligible for Budet Shipping then buedget Shipping will not be available and thus the offer for Free Budget Shipping will not apply.

Free Budget Shipping is not available for International orders.

General Information

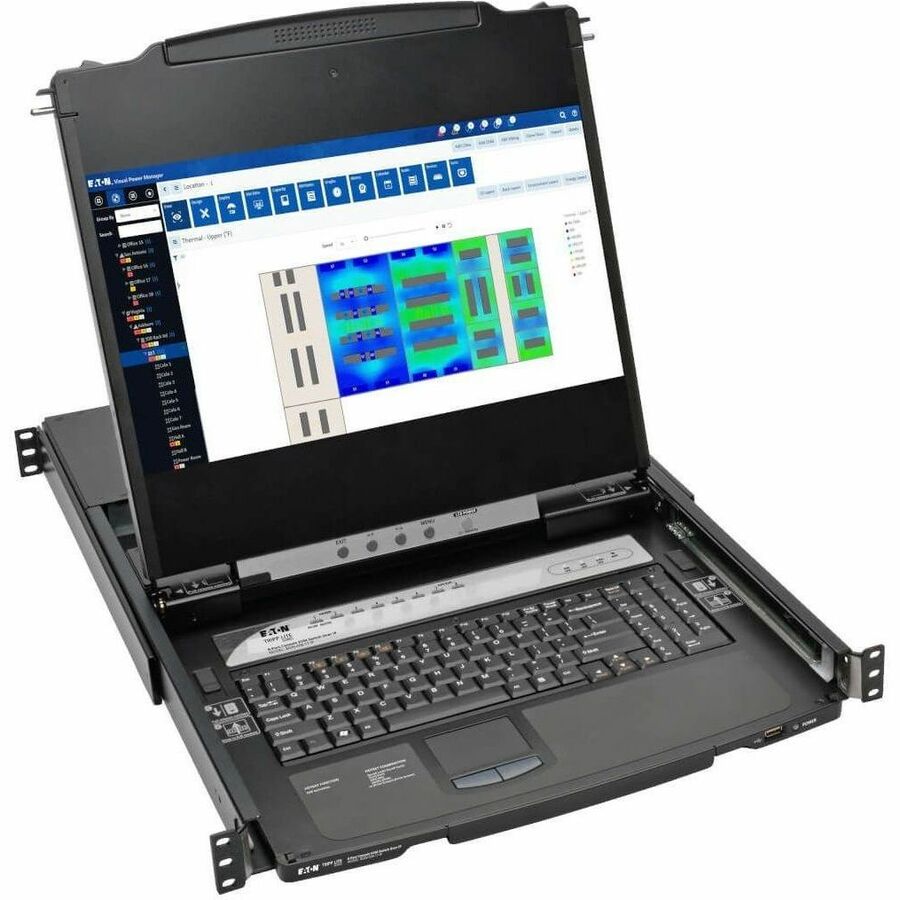

Tripp Lite's B030-008-17-IP NetDirector® 8-Port 1U Rack-Mount Console HDMI KVM Switch combines a rack-mountable keyboard, 17-inch LCD, touchpad and built-in IP remote access into a compact housing that occupies only 1U of rack space. From across the room, down the street or halfway around the globe, you can access up to eight connected computers or servers from any computer via LAN, WAN or Internet. Easy to install and use, the B030-008-17-IP lets you handle complex problems without needing to be on-site, which saves money and time.

The 17-inch LCD screen supports video resolutions up to 1920 x 1080. You can switch easily between ports using on-console push buttons, an on-screen display or keyboard hot key commands. Up to 64 users can be authorized and 32 remote users can be logged on concurrently with multi-level password security when multi-user operation is enabled. RADIUS and LDAP/S server authentication is supported.

The B030-008-17-IP controls USB computers/servers using a P782-XXX-DH Series KVM Cable Kit (sold separately) for each. When not in use, the KVM switch stores neatly in a rack drawer and pulls out when needed. With its dual-rail design, you can slide the keyboard into the rack, while the monitor stays visible. The B030-008-17-IP is compatible with all major operating systems and web browsers. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Features

Complete Control from Anywhere

  • Combines 8-port KVM switch, 17 in. LCD screen, keyboard and touchpad to save rack space
  • Built-in IP access lets you control up to 8 computers directly from the next room, next door, or the next continent via LAN, WAN or the Internet
  • Supports IPv4, IPv6 and network interfaces TCP/IP, HTTP, HTTPS, UDP, RADIUS, DHCP, SSL, ARP, DNS, 10Base-T/100Base-TX, Auto Sense and Ping
  • Windows- and Java-based applications provide access without a browser


Simplifies IT Tasks

  • Switch easily between ports via on-console buttons, on-screen display or hot keys
  • Panel array mode lets you monitor multiple ports at the same time
  • Add or remove computers without powering down switch
  • Auto-scan mode automatically sequences through all accessible active ports
  • Windows-based log server records events and saves them to a searchable database


Large 17 in. LCD

  • Supports video resolutions up to 1920 x 1080
  • LCD flips up and folds down for full access to rack equipment when not in use
  • Dual-rail design lets you push in keyboard while LCD stays open
  • Wide display makes multitasking easier
  • DDC emulation allows settings of each computer to be automatically adjusted for optimal output to LCD

Advanced Security Features

  • Features advanced encryption technologies, such as 1024-bit RSA, 256-bit AES, 56-bit DES, and 128-bit SSL
  • Supports RADIUS and LDAP/S remote authentication
  • Allows up to 64 user accounts
  • Up to 32 users can log on simultaneously with multi-user operation enabled

Expandability and Long-Lasting Reliability

  • Compatible with all major operating systems and browsers
  • Flash firmware is upgradable over a network connection
  • Heavy-duty steel housing stands up to frequent use

More

Technical Information
KVM Switch:Yes
KVM Technology:Digital
Number of Computers Supported:8
Device Type:LCD Rack Console

Display & Graphics
Screen Size:17"
Display Screen Type:LCD
Screen Mode:Full HD
Screen Resolution:1920 x 1080

Input Devices
Keyboard:Yes
Pointing Device Type:TouchPad

Interfaces/Ports
Network (RJ-45):Yes
USB:Yes
HDMI:Yes
Number of Network (RJ-45) Ports:1
Number of USB Ports:10
Number of HDMI Ports:9

Power Description
Input Voltage Range:120V AC to 230V AC

Physical Characteristics
Color Family:Black
Product Color:Black
Product Material:Steel
Rack Height:1U
Height:1.7"
Width:18.9"
Depth:26.8"
Weight (Approximate):26.01 lb

Miscellaneous
Package Contents:
  • B030-008-17-IP NetDirector 8-Port 1U Rack-Mount Console HDMI KVM Switch
  • 2 x High-speed HDMI Cables, 6 ft.
  • 2 x USB 2.0 A/B Cables, 6 ft.
  • C13 to NEMA 5-15P Power Cord
  • Mounting Hardware
  • Owner's Manual
Platform Supported:PC
Certifications & Standards:
  • UL 60950-1 (USA)
  • CAN/CSA (Canada)
  • FCC Part 15 Class A
  • CE
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)
Country of Origin:Taiwan
TAA Compliant:Yes

Warranty
Limited Warranty:3 Year

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.





Product images may differ from actual product appearance.
Be the first to review this product. Write a Review
Shipping Restrictions
  • This item cannot be shipped to PO Boxes.
  • This item can be shipped only within the U.S.


  • UPC: 037332194206
  • Mfr's Part #: B030-008-17-IP
