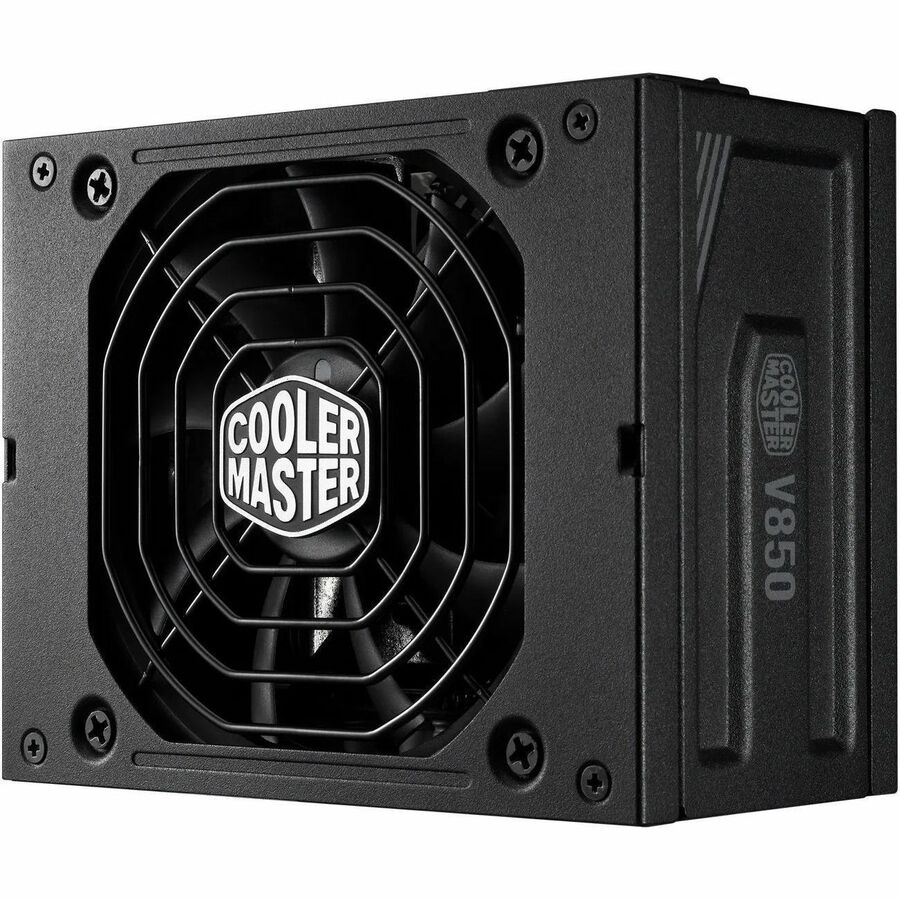

Cooler Master V850 SFX Gold ATX 3.0 Full Modular Power Supply MPY8501SFHAGV3U
Cooler Master V850 SFX Gold ATX 3.0 Full Modular Power Supply MPY8501SFHAGV3U
Your Price:


 Add to Cart
Cooler Master V850 SFX Gold ATX 3.0 Full Modular Power Supply MPY8501SFHAGV3U

Cooler Master V850 SFX Gold ATX 3.0 Full Modular Power Supply MPY8501SFHAGV3U



 Add to Cart


Item #
N-987765
Category
Availability
Condition
New




Product Rating

(0 Ratings) Write a Review

Free Shipping


Free Budget Shipping



Many items at NothingButSavings.com offer FREE Budget Shipping. Plus, as with many of our competitors which do offer free shipping, we don't ask you to spend a specified amount in order to qualify for FREE Budget Shipping.

How do I qualify for Free Budget Shipping?

1. Add the item(s) that qualifies for FREE Budget Shipping to your order's shopping cart.

2. If a product has our "Free Shipping" tag that item will qualify for FREE Buget Shipping regardless of its price.

3. Proceed to checkout and select Budget Shipping as your shipping option (items will take an additional 7-10 business days to ship).

4. Ship your item(s) to a valid U.S. address.

5. Then, complete your order. It's that simple!

6. FREE Budget Shipping excludes certain oversized and/or overweight items, and those products that do not include this tag.

Some items may be excluded:

If certain items in your shopping cart are not eligible for Budet Shipping then buedget Shipping will not be available and thus the offer for Free Budget Shipping will not apply.

Free Budget Shipping is not available for International orders.

General Information

SMALL BUT MIGHTY
As the leading SFX power supply design, the V SFX Gold offers a highly powerful unit in a space-saving, mini form factor.

FLEXIBLE COMPATIBILITY
With the included SFX-to-ATX bracket, the V SFX Gold ATX 3.0 can be used to power systems ranging from as small as a mini-ITX all the way up to E-ATX motherboards.

80 PLUS GOLD CERTIFIED
The V SFX Gold is certified to achieve more than 90% efficiency at typical loads.

ATX 3.0 SUPPORT & A DURABLE 90-DEGREE 12VHPWR CABLE
Includes ATX 3.0 support and a 90-degree 12+4pin (12VHPWR) PCIe 5.0 connector featuring higher electrical durability, lower temperatures, and improved safety.

HIGH-QUALITY JAPANESE CAPACITORS
Large, high-quality Japanese capacitors feature inmproved efficiency and reduced ripple noise.

FULLY MODULAR CABLING
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.

PSU CALCULATOR
Need help choosing the right power supply for your system?Try out our comprehensive and easy-to-use PSU calculator.

More from the Manufacturer

Technical Information
Specification Compliance:ATX 3.0
Specification Compliance:SFX12V v3.42
Efficiency:90%
Power Factor Correction (PFC):Active
Number of Fans:1
Fan Bearing Type:Fluid Dynamic Bearing
Fan Diameter:92 mm
Protection Type:Over Voltage
Protection Type:Over Power
Protection Type:Over Temperature
Protection Type:Short Circuit
Protection Type:Over Current
Protection Type:Under Voltage
Protection Type:Surge
Protection Type:Inrush Current
Modular:Yes
Modular Type:Fully Modular
Features:Low Noise
Cooling Type:Semi-passive

Reliability
MTBF:100000 Hour

Power Description
Number of +12V Rails:1
Input Voltage:120 V AC
Input Voltage:230 V AC
Input Voltage Range:100 V AC - 240 V AC
Output Power:850 W
Input Frequency:50-60Hz

Interfaces/Ports
Number of SATA Power Connectors:8
PCI Express Connector:Yes
PCI Express Version:5.1
Number of (6+2 pin) PCI Express Power Connectors:4
Number of (4+4 pin) CPU Power Connectors:1
Number of 4-pin Molex Power Connectors:4

Environmental Conditions
Minimum Operating Temperature:32°F (0°C)
Maximum Operating Temperature:122°F (50°C)

Physical Characteristics
Color Family:Black
Product Color:Black
Form Factor:SFX
Height:2.5"
Width:4.9"
Depth:3.9"

Miscellaneous
Additional Information:
  • Power Good Signal: 100 - 500 ms
  • Hold Up Time: 16ms
  • LAMBDA Rating: Standard+
  • 12VHPWR Connector: 1
  • Compatibility:PC
    Certifications & Standards:
  • TUV
  • cTUVus
  • CE
  • BSMI
  • FCC
  • CCC
  • EAC
  • RCM
  • CB
  • UKCA
  • Environmentally Friendly:Yes
    Environmental Certification:ErP Lot 3
    Energy Efficiency Certification:80 Plus Gold
    Energy Efficiency Compliance:Energy-related Products Directive Lot 3 (ErP Lot 3)
    Environmental Compliance:Waste Electrical and Electronic Equipment Directive (WEEE)
    Environmental Compliance:China Restriction of Hazardous Substances (China RoHS)

    Warranty
    Limited Warranty:10 Year

    WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.






    Product images may differ from actual product appearance.
    Be the first to review this product. Write a Review
    Shipping Restrictions
    • This item cannot be shipped to PO Boxes.
    • This item can be shipped only within the U.S.


    • UPC: 884102107023
    • Mfr's Part #: MPY-8501-SFHAGV-3U1
