C2G HDMI HDBaseT + VGA, 3.5mm, and USB-B to A Over Cat Extender Wall Plate
Item #
N-940906
Category
Availability
Condition
Brand
Product Rating
(0 Ratings)
Free Shipping
Free Budget Shipping
Many items at NothingButSavings.com offer FREE Budget Shipping. Plus, as with many of our competitors which do offer free shipping, we don't ask you to spend a specified amount in order to qualify for FREE Budget Shipping.
How do I qualify for Free Budget Shipping?
1. Add the item(s) that qualifies for FREE Budget Shipping to your order's shopping cart.
2. If a product has our "Free Shipping" tag that item will qualify for FREE Buget Shipping regardless of its price.
3. Proceed to checkout and select Budget Shipping as your shipping option (items will take an additional 7-10 business days to ship).
4. Ship your item(s) to a valid U.S. address.
5. Then, complete your order. It's that simple!
6. FREE Budget Shipping excludes certain oversized and/or overweight items, and those products that do not include this tag.
Some items may be excluded:
If certain items in your shopping cart are not eligible for Budet Shipping then buedget Shipping will not be available and thus the offer for Free Budget Shipping will not apply.
Free Budget Shipping is not available for International orders.
General Information

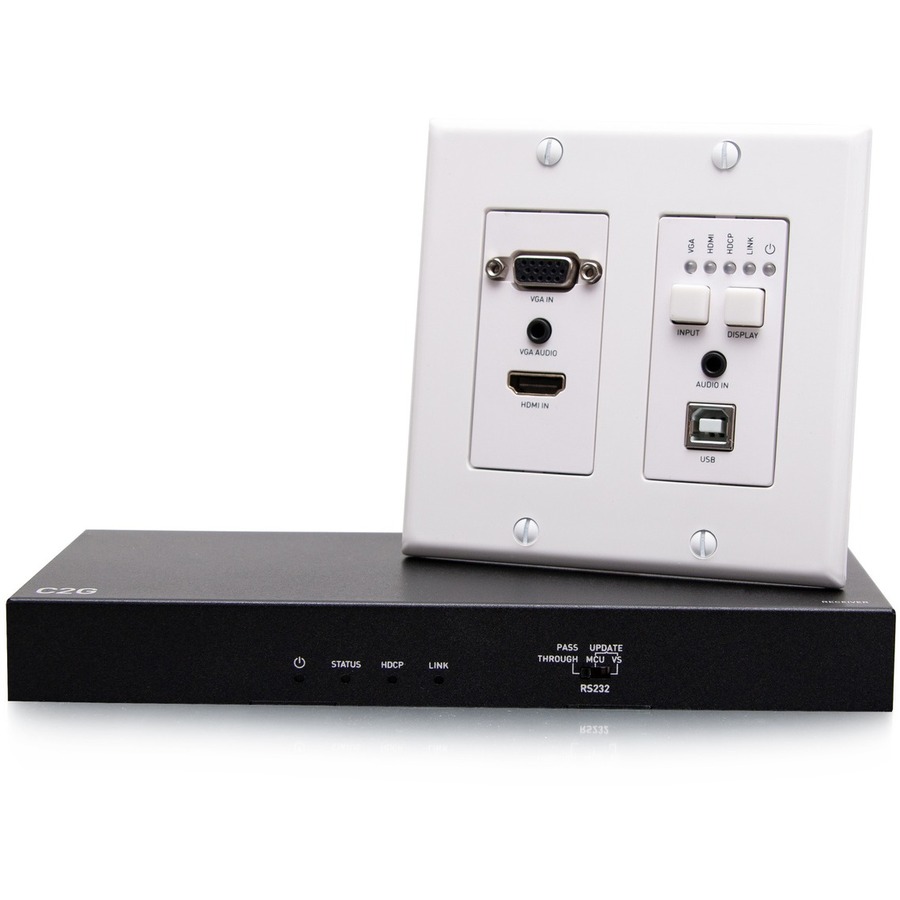

| The HDMI HDBaseT + VGA, 3.5mm, and USB-B to A over Cat Extender Dual Gang Wall Plate Transmitter to Box Receiver - 4K 60Hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where USB must be extended alongside HDMI video and audio to interactive whiteboards and displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard HDMI cabling. The transmitter extends HDMI, VGA, Stereo Audio, and high speed USB 2.0 signals over a single Cat5e, Cat6 or Cat6a network patch cable. Extend 4K HDMI up to 115 feet and 1080p VGA up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances, extend 4K HDMI up to 130 feet using a Cat6a cable. This HDMI HDBaseT Extender is HDCP 2.2 compliant, making sure that the connection between the source and display is secure. Automatic switching is supported by the transmitter, connecting to the last active source. One-way analog audio pass through is supported from the transmitter to the receiver. High-speed USB 2.0 pass through is supported over HDBaseT up to 230ft for KVM control of devices such as USB cameras, keyboards, mice, etc. With PoH support, the receiver can send power to the wall plate transmitter, so no additional power adapter is required, allowing for greater flexibility in installations. Support this HDBaseT system that is already deployed in the field by upgrading firmware through the Micro-USB port on front panel of the wall plate transmitter, and upgrade the firmware through the RS232 port on rear panel of the receiver. |
Technical Information
| Connectivity Technology: | Wired |
| Number of Input Devices Supported: | 2 |
| Number of Output Devices Supported: | 1 |
| Maximum Operating Distance: | 230 ft |
Video
| Graphics Modes: | 4K |
| Supported Video Modes: | 1080p |
Interfaces/Ports
| Network (RJ-45): | Yes |
| HDMI In: | Yes |
| HDMI Out: | Yes |
| VGA In: | Yes |
| USB: | Yes |
| Number of Network (RJ-45) Ports: | 2 |
| Number of USB Ports: | 7 |
| Number of HDMI Inputs: | 1 |
| Number of HDMI Outputs: | 1 |
| Number of VGA Inputs: | 1 |
Media & Performance
| Media Type Supported: | Twisted Pair |
| Twisted Pair Cable Standard: | Category 7 |
Physical Characteristics
| Color Family: | Black |
| Product Color: | Black |
| Transmitter Height: | 1.51" |
| Transmitter Width: | 3.50" |
| Transmitter Depth: | 4.16" |
| Receiver Height: | 0.98" |
| Receiver Width: | 8.27" |
| Receiver Depth: | 3.55" |
| Form Factor: | Wall Plate |
| Transmitter Weight (Approximate): | 10.58 oz |
| Receiver Weight (Approximate): | 1.01 lb |
Miscellaneous
| Package Contents: |
|
| Country of Origin: | China |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Waste Electrical and Electronic Equipment Directive (WEEE) |
 | WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. |
Product images may differ from actual product appearance.
Be the first to review this product.
Write a Review
Shipping Restrictions
- This item cannot be shipped to PO Boxes.
- This item can be shipped only within the U.S.
- UPC: 757120310129
- Mfr's Part #: C2G31012
