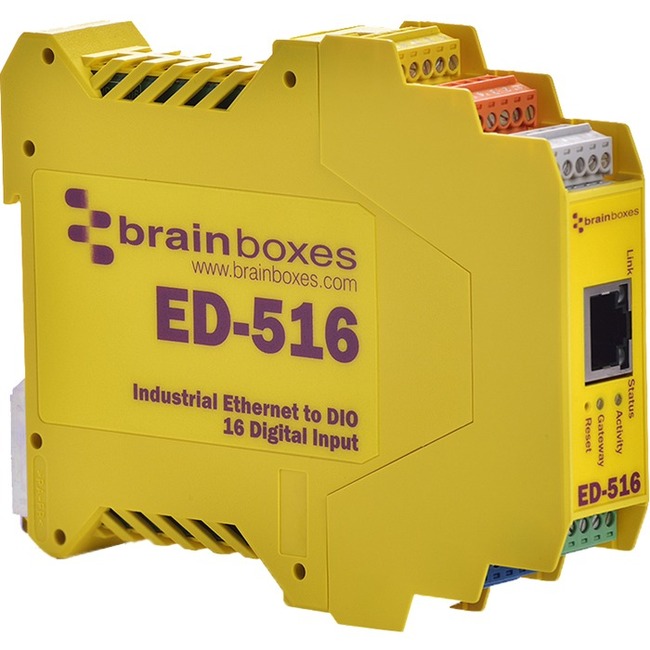

Ethernet to DIO device: 16 non-isolated digital input channels. Outputs each group of 4 lines has its own common rail. Powerful ARM 80 MHz, 32 Bit CPU. The device can be controlled over TCP/IP using the Modbus TCP protocol or simple ASCII commands. Additionally Brainboxes supply a suite of APIs and sample code to communicate with the device using Microsoft .NET framework Visual Basic, C#, C++, Java, Javascript, PHP and more. The device and be configured and secured from a web browser. The device can be installed as a COM Port on a Windows PC to give complete backwards compatibility essential for legacy applications. Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as 'process side'. The ED product range is designed for harsh environments. The digital output port line are implemented as protected output circuits, providing current overload and short circuit protection, voltage surge, overload and open circuit protection and over temperature protection to allow the widest possible usage and range of devices. The outputs are good for driving hot and cold resistive loads, capacitive loads and inductive loads and are especially suited for loads with high inrush currents such as cold bulbs/lamps and motors. Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids. |
| Media Type Supported: | Twisted Pair |
| Wireless LAN: | No |
| Ethernet Technology: | Fast Ethernet |
| Network Standard: | 10/100Base-TX |
| Network (RJ-45): | Yes |
| Phone Line (RJ-11): | No |
| Network (RJ-11): | No |
| USB: | No |
| Serial Port: | Yes |
| Parallel Port: | No |
| Centronics Port: | No |
| Management Port: | Yes |
| PoE (RJ-45) Port: | No |
| Number of Network (RJ-45) Ports: | 1 |
| Number of Serial Ports: | 1 |
| Form Factor: | Rail-mountable |
| Height: | 5.1" |
| Width: | 0.9" |
| Depth: | 4" |
| Weight (Approximate): | 4.73 oz |
| Package Contents: |
|
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance: | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin: | United Kingdom |
| TAA Compliant: | Yes |
| Limited Warranty: | Lifetime |
 | WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. |
Product images may differ from actual product appearance.
- This item cannot be shipped to PO Boxes.
- This item can be shipped only within the U.S.
Special Order Item
This item ships directly from the manufacturer and is not stocked in our warehouse. If stock is available at the manufacturer, the item will ship directly to you, usually within 7 - 15 business days.
Once the order has been sent to the manufacturer it can no longer be canceled.
If payment is made via credit card it will be charged before the order is sent to the manufacturer.
You must contact the manufacturer directly regarding returns and defective items.
We will contact you by email if the item is sold out or backordered (and we were unable to update the site before you placed the order) or if the item will be delayed longer than expected.
We have no control over the speed of the manufacturer's order processing, or whether they will honor your request to ship the item by any particular method.
- UPC: 837324004083
- Mfr's Part #: ED-516-X20M
