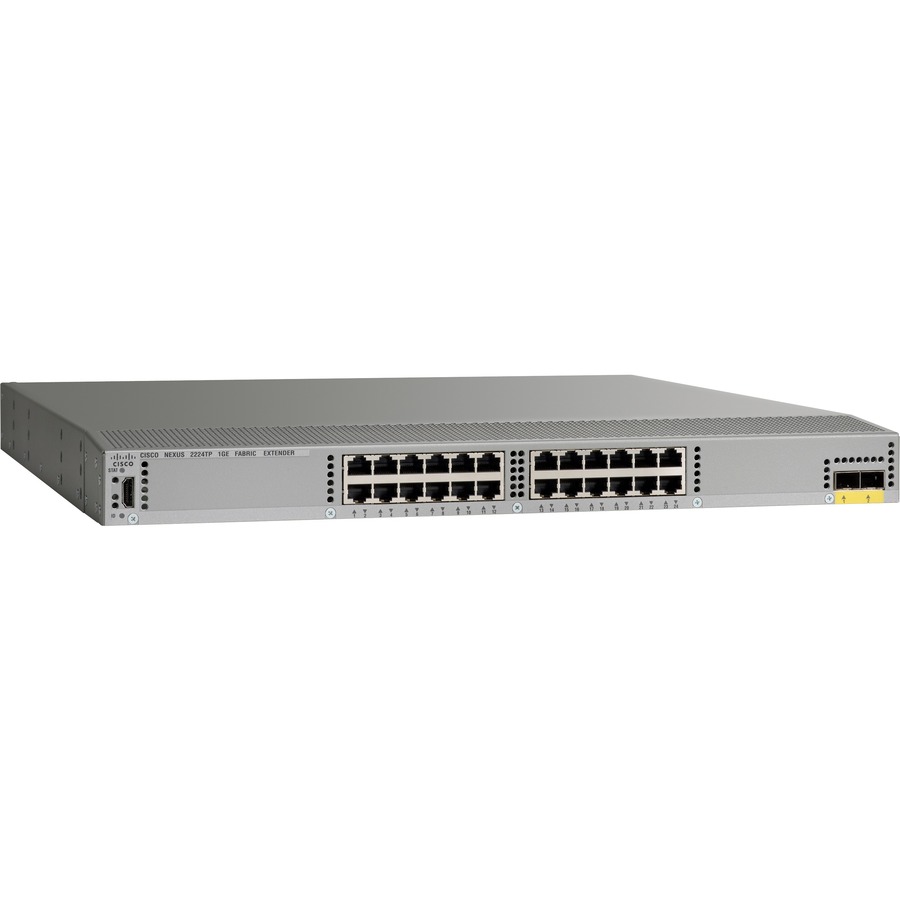

Cisco Nexus 2224TP GE Fabric Extender N2KC2224TF1GERF Refurbished
Cisco Nexus 2224TP GE Fabric Extender N2KC2224TF1GERF Refurbished

Your Price:
$3603.44


 Add to Cart
Cisco Nexus 2224TP GE Fabric Extender N2KC2224TF1GERF Refurbished

Cisco Nexus 2224TP GE Fabric Extender N2KC2224TF1GERF Refurbished
Your Price:
$3603.44



IMPORTANT: This is a SPECIAL ORDER item and may take additional shipping time.

IMPORTANT: This is a SPECIAL ORDER item and may take additional shipping time.

 Add to Cart


Item #
N-685542
Category
Availability
Special Order Items are shipped from the manufacturer and take 5-15 business days
Condition
Brand




Product Rating

(0 Ratings) Write a Review

Free Shipping


Free Budget Shipping



Many items at NothingButSavings.com offer FREE Budget Shipping. Plus, as with many of our competitors which do offer free shipping, we don't ask you to spend a specified amount in order to qualify for FREE Budget Shipping.

How do I qualify for Free Budget Shipping?

1. Add the item(s) that qualifies for FREE Budget Shipping to your order's shopping cart.

2. If a product has our "Free Shipping" tag that item will qualify for FREE Buget Shipping regardless of its price.

3. Proceed to checkout and select Budget Shipping as your shipping option (items will take an additional 7-10 business days to ship).

4. Ship your item(s) to a valid U.S. address.

5. Then, complete your order. It's that simple!

6. FREE Budget Shipping excludes certain oversized and/or overweight items, and those products that do not include this tag.

Some items may be excluded:

If certain items in your shopping cart are not eligible for Budet Shipping then buedget Shipping will not be available and thus the offer for Free Budget Shipping will not apply.

Free Budget Shipping is not available for International orders.

General Information

Cost-Effective, Scalable Access Layer

The Cisco Nexus 2224TP GE Fabric Extender provides an efficient and agile solution to help enable business transformation. As part of the unified fabric pillar of Cisco Data Center Business Advantage, it interoperates with other Cisco solutions to transform the data center.

In a compact, 1 rack unit (1 RU) form factor, the Cisco Nexus 2224TP GE Fabric Extender provides:

  • 24 Fast Ethernet and Gigabit Ethernet (100/1000BASE-T) server ports
  • Two 10 Gigabit Ethernet uplink ports

The combination of the Cisco Nexus 2224TP with upstream Cisco Nexus 5000 Series Switches offers a cost-effective solution for low-server-density racks. This provides your data center both architectural flexibility and simplified operations.

Feature and CapabilitiesArchitectural Flexibility

The Cisco Nexus 2224TP GE Fabric Extender offers architectural flexibility with:

  • Reduced data center cabling costs and footprint with optimized inter-rack cabling
  • Increased resiliency with Virtual PortChannel (vPC) and in-service software upgrades

Simplified Operations

Cisco Nexus 5000 Series Switches provide:

  • A single point of management and policy enforcement
  • Ready-to-use auto configuration management

Increased Business Agility

This solution offers quick expansion of network capacity.

Physical Characteristics
Form Factor:Rack-mountable
Height:1.7"
Width:17.3"
Depth:17.7"
Weight (Approximate):16.60 lb

Miscellaneous
Additional Information:
  • Fabric extender host interfaces: 24
  • Fabric extender host interfaces type: 100BASE-T/1000BASE-T ports: RJ-45 connectors
  • Fabric extender fabric interfaces: 2
  • Fabric speed: 20 Gbps in each direction (40 Gbps full duplex)
  • Oversubscription: 1.2:1
  • Performance: Hardware forwarding at 88 Gbps or 65 mpps
  • Typical input operating power: 80W (max 95W)
  • Output current: 5A/7A (typical/maximum)
  • Heat dissipation: 201/282 BTU/hour (typical/maximum)
Application/Usage:Switch
Compatibility:

Cisco Nexus Switches:

  • 5000 Series
  • 6000 Series
  • 7000 Series
  • 9000 Series
Environmentally Friendly:Yes

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.






Product images may differ from actual product appearance.
Be the first to review this product. Write a Review
Shipping Restrictions
  • This item cannot be shipped to PO Boxes.
  • This item can be shipped only within the U.S.

Special Order Item

This item ships directly from the manufacturer and is not stocked in our warehouse. If stock is available at the manufacturer, the item will ship directly to you, usually within 7 - 15 business days.

Once the order has been sent to the manufacturer it can no longer be canceled.

If payment is made via credit card it will be charged before the order is sent to the manufacturer.

You must contact the manufacturer directly regarding returns and defective items.

We will contact you by email if the item is sold out or backordered (and we were unable to update the site before you placed the order) or if the item will be delayed longer than expected.

We have no control over the speed of the manufacturer's order processing, or whether they will honor your request to ship the item by any particular method.



  • UPC: 783555289334
  • Mfr's Part #: N2K-C2224TF-1GE-RF
