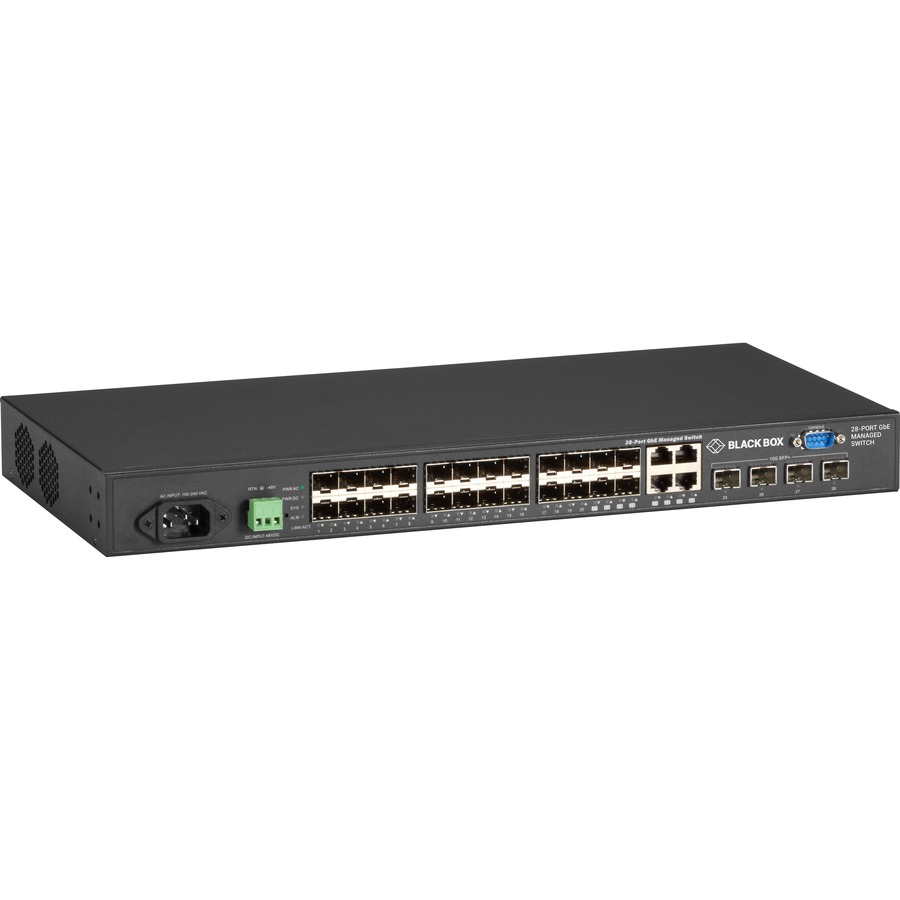

Black Box Gigabit Managed Ethernet SFP Fiber Switch 28-Port
Black Box Gigabit Managed Ethernet SFP Fiber Switch 28-Port

Your Price:
$1169.74


 Add to Cart
Black Box Gigabit Managed Ethernet SFP Fiber Switch 28-Port

Black Box Gigabit Managed Ethernet SFP Fiber Switch 28-Port
Your Price:
$1169.74



 Add to Cart


Item #
N-609981
Category
Availability
Condition
New




Product Rating

(0 Ratings) Write a Review

Free Shipping


Free Budget Shipping



Many items at NothingButSavings.com offer FREE Budget Shipping. Plus, as with many of our competitors which do offer free shipping, we don't ask you to spend a specified amount in order to qualify for FREE Budget Shipping.

How do I qualify for Free Budget Shipping?

1. Add the item(s) that qualifies for FREE Budget Shipping to your order's shopping cart.

2. If a product has our "Free Shipping" tag that item will qualify for FREE Buget Shipping regardless of its price.

3. Proceed to checkout and select Budget Shipping as your shipping option (items will take an additional 7-10 business days to ship).

4. Ship your item(s) to a valid U.S. address.

5. Then, complete your order. It's that simple!

6. FREE Budget Shipping excludes certain oversized and/or overweight items, and those products that do not include this tag.

Some items may be excluded:

If certain items in your shopping cart are not eligible for Budet Shipping then buedget Shipping will not be available and thus the offer for Free Budget Shipping will not apply.

Free Budget Shipping is not available for International orders.

General Information

This advanced, fully-manageable Layer 2 switch gives you networking versatility. It features 28 high-speed fiber ports: (4) 1-Gbps/10-Gbps SFP fiber ports, (20) 100-/1000-Mbps SFP fiber ports, and (4) dual-media 100-/1000-Mbps SFP/twisted-pair ports.

This all fiber switch gives you the flexibility to select a variety of ranges with SFP transceivers.

Advanced functions in an economical package.

This switch offers advanced switching and security features normally found in more expensive switches. You'll get extensive management capabilities, greater bandwidth control, and QoS for switching in VoIP and other real-time, high-performance applications.

Pack up the trunk.

To provide more bandwidth to a specific application or segment, combine ports using the switch's 802.3ad Link Aggregate Control Protocol (LACP) capabilities. With this bandwidth aggregation feature, the combined ports create a multilink trunk for load sharing. The switch supports 14 groups with 8 ports per group.

High-level service.

The switch offers extensive Quality of Service support including prioritization, classification, scheduling, rate limitations, and more. The switch also supports eight hardware queues.

Safe and secure.

Your network is safe with this switch. It also offers MAC address filtering and VLAN capabilities so you can segregate networks.

Multiple management options.

Monitor, configure, and control the switch via its RS-232 serial port, or through Ethernet using CLI or Web-based management.

Green

The SFP Gigabit/10-Gigabit Managed Fiber Switch Eco features IEEE 802.3az energy-efficient Ethernet, which scales down power consumption during periods of low data activity. This feature adds up to energy savings of up to 50%.

SFPs

For the SFP slots, order SFP modules, such as the 850-nm Multimode Gigabit SFP Module (LFP411) and 1310-nm Single-mode Gigabit SFP Module (LFP412). For information on SFP module compatibility, contact our FREE Tech Support)

Interfaces/Ports
Total Number of Network Ports:4
Uplink Port:Yes
Modular:Yes
Network (RJ-45):Yes
Port/Expansion Slot Details:4 x Gigabit Ethernet TP/SFP Combo

Media & Performance
Media Type Supported:Optical Fiber
Media Type Supported:Twisted Pair
Ethernet Technology:Gigabit Ethernet
Ethernet Technology:10 Gigabit Ethernet
Network Technology:10GBase-X
Network Technology:1000Base-X
Network Technology:10/100/1000Base-T

I/O Expansions
Total Number of Expansion Slots:24.0
Expansion Slot Type:SFP
Expansion Slot Type:SFP+
Shared SFP Slot:Yes
Number of SFP Slots:20
Number of SFP+ Slots:4

Network & Communication
Layer Supported:2
Networking Standards:IEEE 802.3ad
Networking Standards:IEEE 802.1D
Networking Standards:IEEE 802.1w
Networking Standards:IEEE 802.1s
Networking Standards:IEEE 802.1Q
Networking Standards:IEEE 802.1x
Networking Standards:IEEE 802.1p
Networking Standards:IEEE 802.1ab
Networking Standards:IEEE 802.3u
Networking Standards:IEEE 802.3x
Networking Standards:IEEE 802.3z
Networking Standards:IEEE 802.3ab
Networking Standards:IEEE 802.3ae
Networking Standards:IEEE 802.3ah
Networking Standards:IEEE 802.3az
Networking Standards:IEEE 802.3ag

Management & Protocols
Manageable:Yes

Power Description
Frequency:50 Hz
Frequency:60 Hz
Power Source:Power Supply
Power Consumption:38.64 W

Physical Characteristics
Form Factor:Rack-mountable
Height:1.7"
Width:17.4"
Depth:8.3"
Weight (Approximate):6.80 lb

Miscellaneous
Package Contents:
  • Gigabit Managed Ethernet SFP Fiber Switch - 28-Port
  • AC Power Cord
  • 1 x Terminal Block
  • 4 x Adhesive Rubber Feet
  • 1 x Quick Installation Guid
Country of Origin:Taiwan
TAA Compliant:Yes
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)
Environmental Compliance:Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty:1 Year

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.






Product images may differ from actual product appearance.
Be the first to review this product. Write a Review
Shipping Restrictions
  • This item cannot be shipped to PO Boxes.
  • This item can be shipped only within the U.S.


  • UPC: 822088142034
  • Mfr's Part #: LGB5128A-R2
