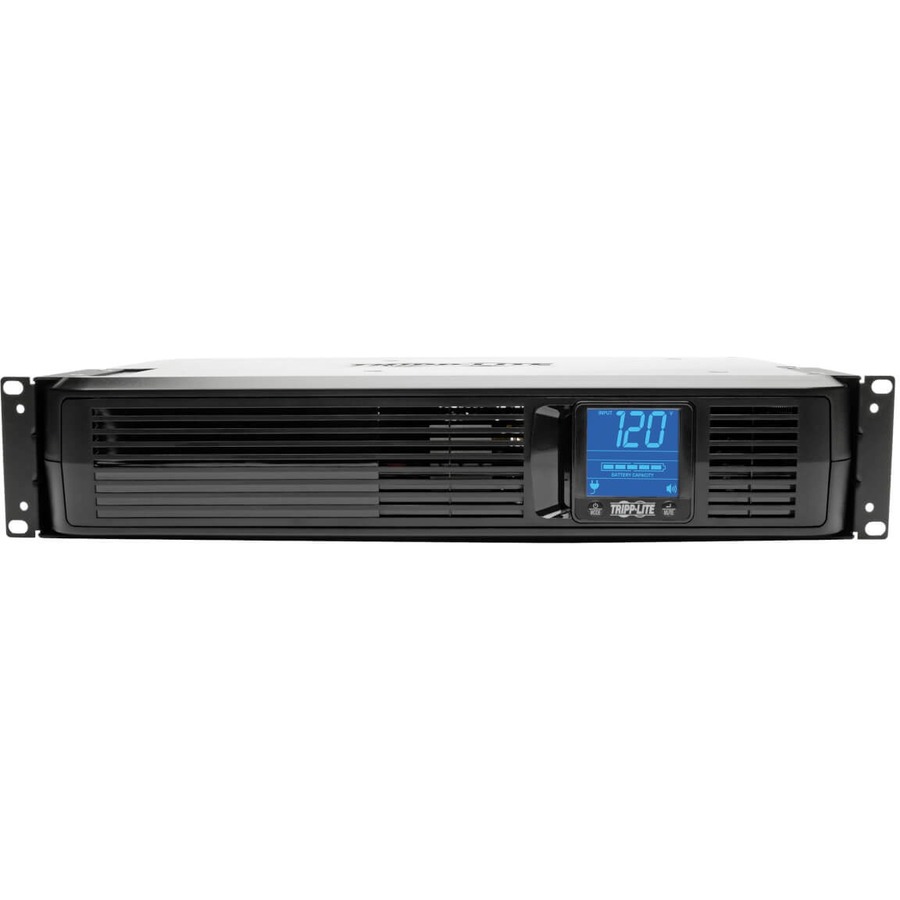

The SMART1200LCD SmartPro LCD 120V, 1200VA/700W Line-Interactive Uninterruptible Power Supply provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up your desktop computer or audio/visual components, this line-interactive UPS switches to battery backup mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.

Eight NEMA 5-15R outlets protect against surges, as well as provide up to 14.3 minutes of UPS battery support at half load (350W) and 4.0 minutes of support at full load (700W). Automatic voltage regulation (AVR) corrects severe undervoltages as low as 75V and overvoltages as high as 147V without using any battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage. A 870-joule surge suppression rating protects your equipment from harmful power surges.

NEMA 5-15P plug with 6-ft. (1.83 m) cord connects to any NEMA 5-15R socket. Large rotatable LCD screen shows real-time input voltage, overload, AVR and battery statuses at a glance. Alarm sounds to indicate power loss or low battery. With Tripp Lite's free PowerAlert software (available via free web download), the SMART1200LCD enables safe unattended system shutdown and file saves in case of a prolonged power failure.

Reliable Battery Backup

• Provides 1200VA/700W high-performance power protection for desktop computers, audio/video components, media centers and other electronics
• Supports 50% load (350W) up to 12 minutes and full load (700W) up to 4 minutes
• Audible alarm indicates loss of utility power or low battery
• Battery access door enables hot-swappable, user-replaceable internal batteries

Optimized Outlets

• 8 NEMA 5-15R outlets provide battery backup and protect against surges or spikes that can harm equipment or data

Automatic Voltage Regulation (AVR)

• Corrects undervoltages as low as 75V and overvoltages as high as 147V without drawing battery backup power

Rotatable LCD Status Screen

• Large LCD screen shows real-time input voltage, overload, AVR and battery statuses
• Rotates for easy viewing in both horizontal and vertical installations
• Dimmer option controls brightness level

AC Line, Tel/DSL and Ethernet Surge Suppression

• Surge suppression rating of 870 joules protects connected equipment and data from harmful power surges
• Built-in RJ-45 jacks protect single-line tel/DSL or network Ethernet connection

More from the Manufacturer

Front panel LCD screen with blue backlight offers:

• Continuous input line voltage data
• Line power
• Battery power
• Battery charge level
• Voltage regulation operation

• Tested to UL1778 (USA)
• CSA (Canada)
• NOM (Mexico)
• Class B (EMI)
• FCC Part 68
• Industry Canada (US & Canada)

• SmartPro 1200 VA Rack-mountable Tower Digital UPS
• SMART1200LCD Digital UPS
• USB, DB9 and phone cabling
• Mounting hardware
• Manual with warranty information

• Switches: Includes 2 front panel switches one main on/off power switch and one dual-function "alarm cancel"/"self test" button
• WatchDog compatibility: Yes, compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications
• Low voltage transfer to battery power: Switches to battery power as line voltage decreases to 75V or less, switches back to AC mode as line voltage increases to 79V or higher
• High voltage transfer to battery power: Switches to battery mode as line voltage increases to 147V or higher, switches back to AC mode as line voltage decreases to 143V or lower
• Cold Start: Yes, inverter can be "cold started" to enable temporary AC output during a power failure
• Typical Applications: Entry-level PCs, networked workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Ideal for sensitive electronic applications in areas where brownout conditions are common
• Internal UPS circuits support entry-level PCs or individual VCR/DVR components during power failures
• Prevents data loss, viewing interruptions, lost recordings and loss of component programming
• Automatic voltage regulation (AVR) circuits regulate brownouts and overvoltages from 75V to 147V back to usable levels without using battery power
• HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows, Mac OS X and Linux
• Display is rotatable for easy viewing whether UPS is in vertical or horizontal position.
• Cabinet adapts to tower or rackmount shelf format
