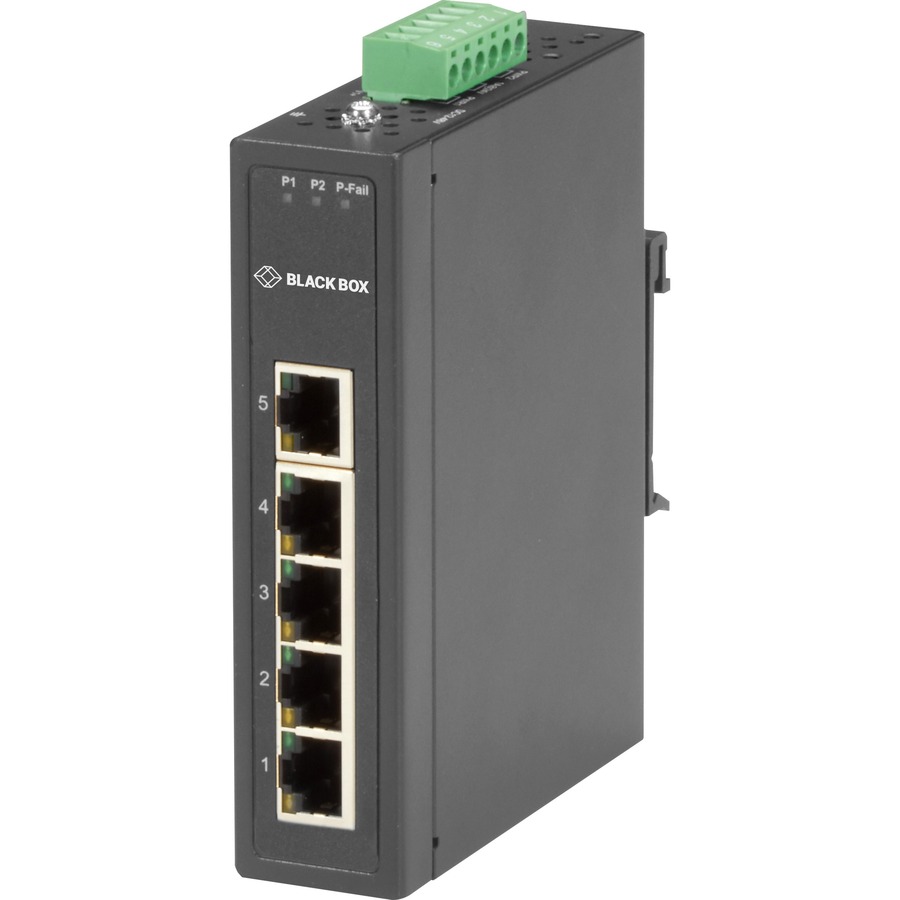

Black Box Industrial 10/100-Mbps Ethernet Switch 5-Port LBH3050A
Black Box Industrial 10/100-Mbps Ethernet Switch 5-Port LBH3050A

Your Price:
$110.85


 Add to Cart
Black Box Industrial 10/100-Mbps Ethernet Switch 5-Port LBH3050A

Black Box Industrial 10/100-Mbps Ethernet Switch 5-Port LBH3050A
Your Price:
$110.85



IMPORTANT: This is a SPECIAL ORDER item and may take additional shipping time.

IMPORTANT: This is a SPECIAL ORDER item and may take additional shipping time.

 Add to Cart


Item #
N-511195
Category
Availability
Special Order Items are shipped from the manufacturer and take 5-15 business days
Condition
New




Product Rating

(0 Ratings) Write a Review

Free Shipping


Free Budget Shipping



Many items at NothingButSavings.com offer FREE Budget Shipping. Plus, as with many of our competitors which do offer free shipping, we don't ask you to spend a specified amount in order to qualify for FREE Budget Shipping.

How do I qualify for Free Budget Shipping?

1. Add the item(s) that qualifies for FREE Budget Shipping to your order's shopping cart.

2. If a product has our "Free Shipping" tag that item will qualify for FREE Buget Shipping regardless of its price.

3. Proceed to checkout and select Budget Shipping as your shipping option (items will take an additional 7-10 business days to ship).

4. Ship your item(s) to a valid U.S. address.

5. Then, complete your order. It's that simple!

6. FREE Budget Shipping excludes certain oversized and/or overweight items, and those products that do not include this tag.

Some items may be excluded:

If certain items in your shopping cart are not eligible for Budet Shipping then buedget Shipping will not be available and thus the offer for Free Budget Shipping will not apply.

Free Budget Shipping is not available for International orders.

General Information

Unlike the Ethernet switches in your wiring closet or computer center, the switches at the edges of your network have to withstand extreme temperatures and conditions. This is where the Industrial 10-/100-Mbps Ethernet Switch from Black Box comes in. It's built to withstand extreme temperatures of -40 to 75°C. An IP30 metal housing protects against dust and dirt.

Ideal for use in harsh environments, the switch is ideal for:

  • Security/surveillance to backhaul IP camera data
  • Building automation and HVAC control
  • M2M communications with remote stations in oil/gas facilities
  • Communications networks for defense and military applications
  • Factory automation and machine control

Redundant power

The switch features 12-48 VDC redundant power, which is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resettable Fuse. The former tolerates reverse power wiring while the later protects the switch from overload currents.

Alarm alerts

Each port has two LEDs to show link and collision status. The switch also has a P-Fail LED which, in the event of a power failure, will activate the alarm to notify administrators.

Easy to set up

The switch is literally plug-and-play. All ports are autosensing for speed and duplex, adjusting to the connected device automatically. They also feature Auto MDI/MDI-X, eliminating the need for crossover cables.

Interfaces/Ports
Total Number of Network Ports:5
Uplink Port:Yes
Modular:No
Port/Expansion Slot Details:4 x Fast Ethernet Network
Port/Expansion Slot Details:1 x Gigabit Ethernet Uplink

Media & Performance
Media Type Supported:Twisted Pair
Ethernet Technology:Fast Ethernet
Ethernet Technology:Gigabit Ethernet
Network Technology:10/100Base-T
Network Technology:10/100/1000Base-T

Network & Communication
Layer Supported:2

Management & Protocols
Manageable:No

Physical Characteristics
Form Factor:DIN Rail Mountable
Form Factor:Wall Mountable
Form Factor:Panel-mountable
Height:4.7"
Width:1.2"
Depth:3.7"
Weight (Approximate):1 lb

Miscellaneous
Package Contents:
  • Panel mount kit
  • Country of Origin:China
    Environmentally Friendly:Yes
    Environmental Compliance:Waste Electrical and Electronic Equipment Directive (WEEE)
    Environmental Compliance:Restriction of Hazardous Substances (RoHS)

    Warranty
    Limited Warranty:1 Year

    WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.






    Product images may differ from actual product appearance.
    Be the first to review this product. Write a Review
    Shipping Restrictions
    • This item cannot be shipped to PO Boxes.
    • This item can be shipped only within the U.S.

    Special Order Item

    This item ships directly from the manufacturer and is not stocked in our warehouse. If stock is available at the manufacturer, the item will ship directly to you, usually within 7 - 15 business days.

    Once the order has been sent to the manufacturer it can no longer be canceled.

    If payment is made via credit card it will be charged before the order is sent to the manufacturer.

    You must contact the manufacturer directly regarding returns and defective items.

    We will contact you by email if the item is sold out or backordered (and we were unable to update the site before you placed the order) or if the item will be delayed longer than expected.

    We have no control over the speed of the manufacturer's order processing, or whether they will honor your request to ship the item by any particular method.



    • UPC: 783555221907
    • Mfr's Part #: LBH3050A
