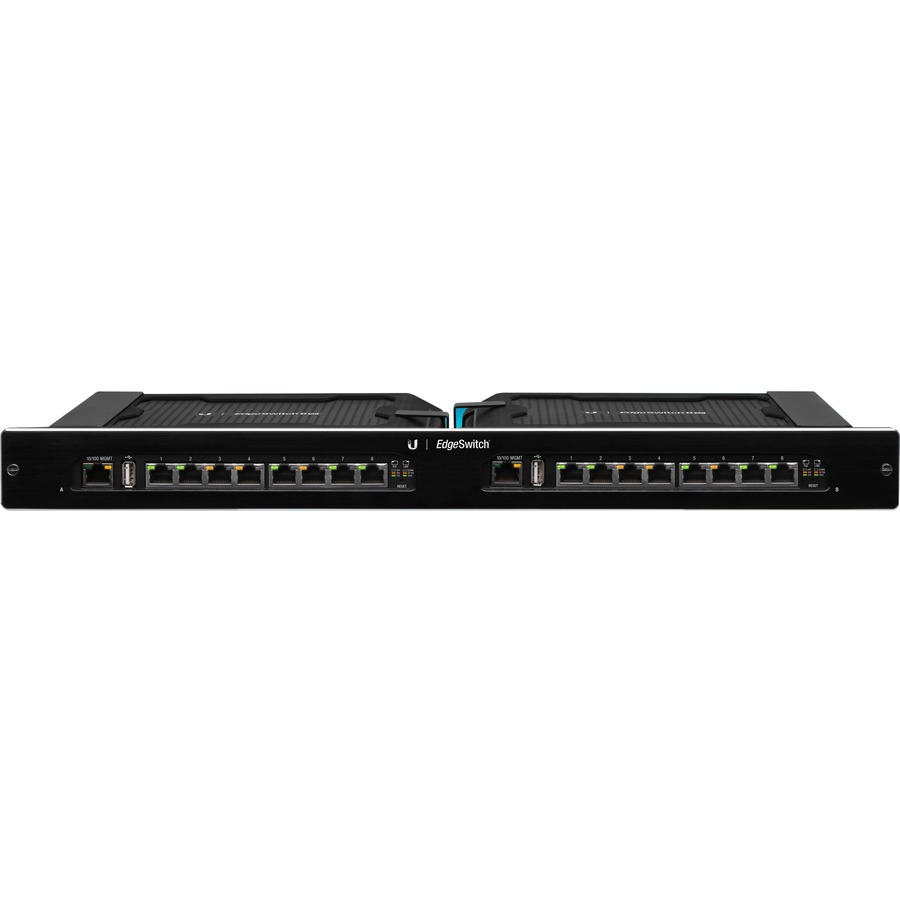

Ubiquiti EdgeSwitch ES-16XP 16 Port POE Pro Ethernet Switch - Rack-mountable
Ubiquiti EdgeSwitch ES-16XP 16 Port POE Pro Ethernet Switch - Rack-mountable
Your Price:


 Add to Cart
Ubiquiti EdgeSwitch ES-16XP 16 Port POE Pro Ethernet Switch - Rack-mountable

Ubiquiti EdgeSwitch ES-16XP 16 Port POE Pro Ethernet Switch - Rack-mountable



IMPORTANT: This is a SPECIAL ORDER item and may take additional shipping time.

IMPORTANT: This is a SPECIAL ORDER item and may take additional shipping time.

 Add to Cart

Item #
N-489325
Category
Switches
Availability
Special Order Items are shipped from the manufacturer and take 5-15 business days
Condition
New
Brand
Ubiquiti Networks




Product Rating

(0 Ratings) Write a Review

Free Shipping


Free Budget Shipping



Many items at NothingButSavings.com offer FREE Budget Shipping. Plus, as with many of our competitors which do offer free shipping, we don't ask you to spend a specified amount in order to qualify for FREE Budget Shipping.

How do I qualify for Free Budget Shipping?

1. Add the item(s) that qualifies for FREE Budget Shipping to your order's shopping cart.

2. If a product has our "Free Shipping" tag that item will qualify for FREE Buget Shipping regardless of its price.

3. Proceed to checkout and select Budget Shipping as your shipping option (items will take an additional 7-10 business days to ship).

4. Ship your item(s) to a valid U.S. address.

5. Then, complete your order. It's that simple!

6. FREE Budget Shipping excludes certain oversized and/or overweight items, and those products that do not include this tag.

Some items may be excluded:

If certain items in your shopping cart are not eligible for Budet Shipping then buedget Shipping will not be available and thus the offer for Free Budget Shipping will not apply.

Free Budget Shipping is not available for International orders.

General Information

Advanced Gigabit PoE Managed Switch

Introducing the Advanced Power over Ethernet Switches, EdgeSwitch™ XP from Ubiquiti Networks. EdgeSwitch XP delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE.

To connect your PoE devices, simply enable PoE in the easy-touse EdgeSwitch XP Configuration Interface. Each port can be individually configured to provide PoE, so both PoE and non-PoE devices can be connected.

EdgeSwitch XP is available in multiple versions to meet your deployment needs.

  • EdgeSwitch 5XP is a cost-effective, 5-port Gigabit switch with 24V PoE support.
  • EdgeSwitch 8XP is an industrialstrength, 8-port Gigabit switch with 150 watts of power capable of powering 24V or 48V devices. Output voltage is controlled by the software.
  • EdgeSwitch 16XP features dual EdgeSwitch 8XP systems in a rack-mountable, 1U form factor with 300 watts of power supporting up to 16 devices.

Simplify Your Deployment

EdgeSwitch XP allows network architects to design cleaner, less cluttered deployments. For example, integrating one EdgeSwitch 8XP can eliminate the need for the following:

  • 8 PoE adapters
  • 8 power cords
  • 8 power outlets
  • 8 Ethernet patch cables

EdgeSwitch XP deployments increase efficiency and greatly reduce potential failure points - resulting in faster installations and less maintenance and troubleshooting.

Intuitive Configuration Interface

EdgeSwitch XP provides a user-friendly configuration interface designed for efficient setup and control. Accessed via a secured management port and web browser, the EdgeSwitch XP Configuration Interface provides intuitive management with a virtual view of the ports, showing physical connectivity, speed, and PoE status

Advanced Features

EdgeSwitch XP is loaded with a variety of advanced features, including

  • Port monitoring
  • System connection and management services
  • Virtual Local Area Network (VLAN) configuration
  • Spanning Tree Protocol (STP)/ Rapid Spanning Tree Protocol (RSTP)
  • Jumbo Frame Support
  • Ping Watchdog
  • Configurable alerts

Interfaces/Ports
Total Number of Network Ports:16
Uplink Port:No
Modular:No
Stack Port:No
Port/Expansion Slot Details:16 x Gigabit Ethernet Network

Media & Performance
Media Type Supported:Twisted Pair
Ethernet Technology:Gigabit Ethernet
Network Technology:10/100/1000Base-T

Network & Communication
Layer Supported:2

Management & Protocols
Manageable:Yes

Power Description
Power Source:Power Supply
Redundant Power Supply Supported:No
Power Consumption:150 W

Physical Characteristics
Compatible Rack Unit:1U
Form Factor:Rack-mountable
Height:1.8"
Width:18.9"
Depth:7.3"
Weight (Approximate):8.71 lb

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.





Product images may differ from actual product appearance.
Be the first to review this product. Write a Review
Shipping Restrictions
  • This item cannot be shipped to PO Boxes.
  • This item can be shipped only within the U.S.

Special Order Item

This item ships directly from the manufacturer and is not stocked in our warehouse. If stock is available at the manufacturer, the item will ship directly to you, usually within 7 - 15 business days.

Once the order has been sent to the manufacturer it can no longer be canceled.

If payment is made via credit card it will be charged before the order is sent to the manufacturer.

You must contact the manufacturer directly regarding returns and defective items.

We will contact you by email if the item is sold out or backordered (and we were unable to update the site before you placed the order) or if the item will be delayed longer than expected.

We have no control over the speed of the manufacturer's order processing, or whether they will honor your request to ship the item by any particular method.



  • UPC: 817882024518
  • Mfr's Part #: ES-16XP
