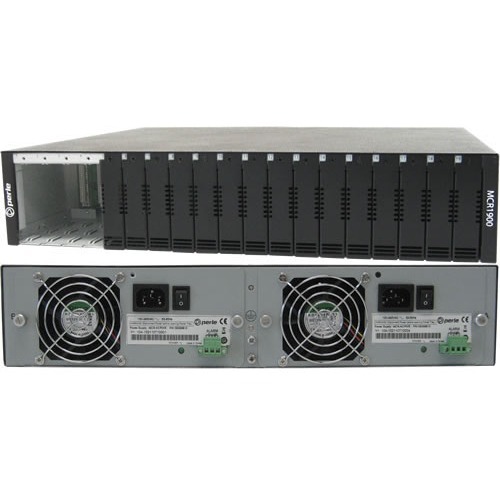

Perle MCR1900-DAC 19 Slot Media Converter and Ethernet Extender Modules Chassis
Perle MCR1900-DAC 19 Slot Media Converter and Ethernet Extender Modules Chassis

Your Price:
$1658.36


 Add to Cart
Perle MCR1900-DAC 19 Slot Media Converter and Ethernet Extender Modules Chassis

Perle MCR1900-DAC 19 Slot Media Converter and Ethernet Extender Modules Chassis
Your Price:
$1658.36



 Add to Cart


Item #
N-202706
Category
Availability
Condition
New




Product Rating

(0 Ratings) Write a Review

Free Shipping


Free Budget Shipping



Many items at NothingButSavings.com offer FREE Budget Shipping. Plus, as with many of our competitors which do offer free shipping, we don't ask you to spend a specified amount in order to qualify for FREE Budget Shipping.

How do I qualify for Free Budget Shipping?

1. Add the item(s) that qualifies for FREE Budget Shipping to your order's shopping cart.

2. If a product has our "Free Shipping" tag that item will qualify for FREE Buget Shipping regardless of its price.

3. Proceed to checkout and select Budget Shipping as your shipping option (items will take an additional 7-10 business days to ship).

4. Ship your item(s) to a valid U.S. address.

5. Then, complete your order. It's that simple!

6. FREE Budget Shipping excludes certain oversized and/or overweight items, and those products that do not include this tag.

Some items may be excluded:

If certain items in your shopping cart are not eligible for Budet Shipping then buedget Shipping will not be available and thus the offer for Free Budget Shipping will not apply.

Free Budget Shipping is not available for International orders.

General Information
The Perle MCR1900 Media Converter Chassis is the most reliable high density modular chassis system available today. It is ideal for enterprise and campus environments where multiple points of copper and/or fiber integration are essential. An end-to-end copper to copper, copper to fiber, multimode to single mode or multimode to multimode solution can be achieved by pairing modules in this high density chassis with another Perle MCR1900 chassis standalone media converters, or standalone Ethernet extenders. Management of Media Converter Modules and chassis can be performed with the addition of a chassis management module. For a low to mid density solution, please check out the MCR200 Media Converter Chassis.

Physical Characteristics
Height:3.5"
Width:17.1"
Depth:14"
Weight (Approximate):15.43 lb

Miscellaneous
Package Contents:
  • MCR1900-DAC - 19 Slot Chassis for Media Converter and Ethernet Extender Modules
  • 15 x Empty Slot Cover Plates
  • 2U - 19" Rack Mounting Hardware
Additional Information:All modules, management module and power supplies are hot-swappable
Certifications & Standards:Emissions:
  • FCC Part 15 Class A, EN55022 Class A
  • CFR47:2003, Chapter 1, Part 15 Subpart B,(USA) Class A
  • ICES-003, Issue 4, February 2004 (Canada)
  • EN55022:1998 + A1:2000 + A2:2003 Class A
  • EN61000-3-2 : 1995, Limits for Harmonic Current Emissions
  • EN61000-3-3 : 1995, Limits of Voltage Fluctuations and Flicker
Immunity:
  • EN55024:1998 + A1:2001 + A2:2003
  • EN61000-4-2: Electrostatic Discharge
  • EN61000-4-3: RF Electromagnetic Field Modulated
  • EN61000-4-4: Fast Transients
  • EN61000-4-5: Surge
  • EN61000-4-6: RF Continuous Conducted
  • EN61000-4-8: Power-Frequency Magnetic Field
  • EN61000-4-11: Voltage Dips and Voltage Interruptions
Safety:
  • IEC 60950-1, First Edition (2001-10) and EN60950-1:2001, CB scheme
  • CAN/CSA-C22.2 No. 60950-1-03 and ANSI/UL 60950-1, First Edition April 1st 2003 (Recognized Component)
Other:
  • ECCN: 5A991A
  • HTSUS Number: 8517.62.0050
Country of Origin:Taiwan
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)
Environmental Compliance:Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance:Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty:Lifetime

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.






Product images may differ from actual product appearance.
Be the first to review this product. Write a Review
Shipping Restrictions
  • This item cannot be shipped to PO Boxes.
  • This item can be shipped only within the U.S.


  • UPC: 734660599542
  • Mfr's Part #: 05059954
