Tripp Lite HDMI over Cat5 Active Extender Kit, Box-Style Transmitter/Receiver
Tripp Lite HDMI over Cat5 Active Extender Kit, Box-Style Transmitter/Receiver

Your Price:
$188.63


 Add to Cart
Tripp Lite HDMI over Cat5 Active Extender Kit, Box-Style Transmitter/Receiver

Tripp Lite HDMI over Cat5 Active Extender Kit, Box-Style Transmitter/Receiver
Your Price:
$188.63



IMPORTANT: This is a SPECIAL ORDER item and may take additional shipping time.

IMPORTANT: This is a SPECIAL ORDER item and may take additional shipping time.

 Add to Cart


Item #
N-553948
Category
Availability
Special Order Items are shipped from the manufacturer and take 5-15 business days
Condition
New
Brand




Product Rating

(0 Ratings) Write a Review

Free Shipping


Free Budget Shipping



Many items at NothingButSavings.com offer FREE Budget Shipping. Plus, as with many of our competitors which do offer free shipping, we don't ask you to spend a specified amount in order to qualify for FREE Budget Shipping.

How do I qualify for Free Budget Shipping?

1. Add the item(s) that qualifies for FREE Budget Shipping to your order's shopping cart.

2. If a product has our "Free Shipping" tag that item will qualify for FREE Buget Shipping regardless of its price.

3. Proceed to checkout and select Budget Shipping as your shipping option (items will take an additional 7-10 business days to ship).

4. Ship your item(s) to a valid U.S. address.

5. Then, complete your order. It's that simple!

6. FREE Budget Shipping excludes certain oversized and/or overweight items, and those products that do not include this tag.

Some items may be excluded:

If certain items in your shopping cart are not eligible for Budet Shipping then buedget Shipping will not be available and thus the offer for Free Budget Shipping will not apply.

Free Budget Shipping is not available for International orders.

General Information

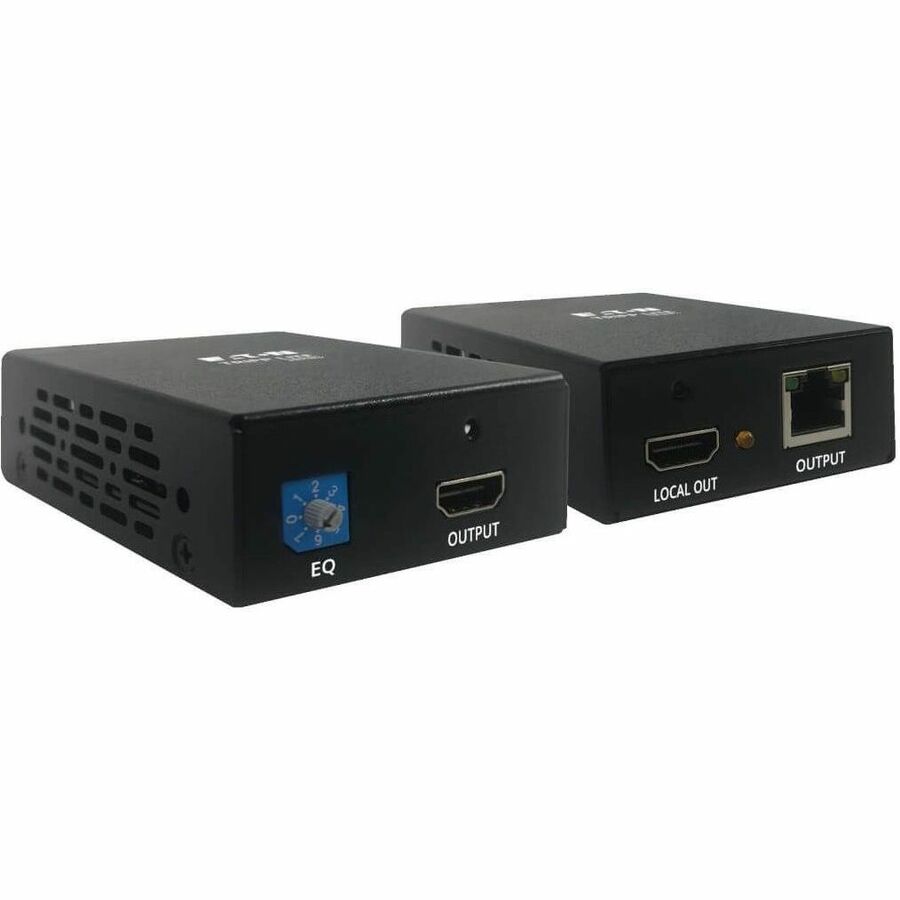

The B126-1A1-POC HDMI over Cat5 Active Extender Kit includes a transmitter unit and a receiver unit that work in tandem to extend an HDMI audio/video signal to a projector, monitor or television. The kit is ideal for digital signs, trade shows, classrooms, churches, offices, retail settings and other applications where the source is located farther than conventional cables allow.

HDMI cable (see Tripp Lite's P569-Series) connects an optional local display and the audio/video source, such as a Blu-ray™ player, to the transmitter's HDMI ports and a remote display to the receiver. Cat5e/6/6a cable connects the two units (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series). Built-in Power over Cable (POC) technology powers the receiver over Cat5e/6/6a cable, so no external power supply on the display side is needed.

The B126-1A1-POC can extend a high-definition 1080p (@ 60 Hz) signal up to 125 feet. In addition to crystal-clear video, the B126-1A1-POC delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM). Built-in equalization control lets you fine-tune the image quality at the remote display. Supports 24-bit True Color (8 bits per channel) and HDCP. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Features

Extends High-Definition Signals

  • Extends a 1080p (@ 60 Hz) signal up to 125 ft.
  • Transmitter and receiver connect with one Cat5e/6/6a cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series)
  • Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio
  • Supports 24-bit True Color (8 bits per channel) and HDCP
  • Built-in equalization control lets you adjust the image on the local monitor

Easy to Set Up and Use

  • Plug-and-play engineering-no software or drivers to download and install
  • Works with all operating systems and HDMI video sources
  • Units connect quickly to monitors with HDMI cable, such as Tripp Lite's P569-Series
  • LEDs indicate at a glance when the units are receiving power and an HDMI signal
  • Included mounting hardware lets you install the units on a wall, rack or pole

TAA Compliant

  • Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Technical Information
Connectivity Technology:Wired
Number of Input Devices Supported:1
Number of Output Devices Supported:1
Maximum Operating Distance:125 ft

Video
Graphics Modes:Full HD
Maximum Video Resolution:1920 x 1080

Interfaces/Ports
Network (RJ-45):Yes
HDMI In:Yes
HDMI Out:Yes
Number of Network (RJ-45) Ports:2
Number of HDMI Inputs:1
Number of HDMI Outputs:2

Media & Performance
Media Type Supported:Twisted Pair
Twisted Pair Cable Standard:Category 6a

Physical Characteristics
Form Factor:Rack-mountable
Form Factor:Wall Mountable
Form Factor:Pole-mountable

Miscellaneous
Package Contents:
  • Transmitter Unit
  • Receiver Unit
  • Screwdriver for Adjusting Equalization
  • External Power Supply with NEMA 1-15P Plug and 5 ft. Cord (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 2A)
  • Mounting Hardware
  • Owner's Manual
Country of Origin:Taiwan
TAA Compliant:Yes
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty:1 Year

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.






Product images may differ from actual product appearance.
Be the first to review this product. Write a Review
Shipping Restrictions
  • This item cannot be shipped to PO Boxes.
  • This item can be shipped only within the U.S.

Special Order Item

This item ships directly from the manufacturer and is not stocked in our warehouse. If stock is available at the manufacturer, the item will ship directly to you, usually within 7 - 15 business days.

Once the order has been sent to the manufacturer it can no longer be canceled.

If payment is made via credit card it will be charged before the order is sent to the manufacturer.

You must contact the manufacturer directly regarding returns and defective items.

We will contact you by email if the item is sold out or backordered (and we were unable to update the site before you placed the order) or if the item will be delayed longer than expected.

We have no control over the speed of the manufacturer's order processing, or whether they will honor your request to ship the item by any particular method.



  • UPC: 037332193117
  • Mfr's Part #: B126-1A1-POC
